Powerful Assist for Urban Rail Transit AFC System: SIGM-2660/2661
Smart City Rail Transit
Traveling is a big part of our lives, and as subway systems continue to expand, more people are choosing to use them for their journeys. The old ways of buying tickets and checking them by hand just can’t keep up with the number of people who need to travel efficiently. That’s why it’s important to have an Automatic Fare Collection (AFC) System in cities’ subway systems. This system helps to make traveling easier and quicker for everyone.
Automatic Fare Collection (AFC) System
An Automatic Fare Collection (AFC) System is the complete Automatic ticket vending and ticket checking infrastructure used in urban rail transit (metro, subway, light rail, etc.). It handles the entire passenger journey from ticket purchase to exit. The AFC System has realized the entire process of online ticket sales, ticket checking, billing, charging, statistics, clearing, and management, and provides functions such as automatic ticket purchase, automatic ticket checking, automatic recharge, and automatic query. To achieve such complex functions, it relies on the coordination and control of its own control system, which must be supported by intelligent control hardware.
Given the continuous innovation and iteration of the AFC System, it is particularly necessary to design a new AFC dedicated controller that meets the requirements of innovation and environmental requirements. To this end, JHCTECH has developed the Automatic Fare Collection (AFC) System controller SIGM-2660/2661 for the rail transit industry based on the Intel® Elkhart Lake Soc J6412 CPU to help the construction of smart city rail transit.
The automatic fare collection system can be divided into five layers from top to bottom: clearing center, line computer system, station computer system, station terminal equipment, and tickets. The dedicated controller for transportation AFC System is mainly for the fourth layer of station terminal equipment. The main supporting equipment is as follows:
JHCTECH has comprehensively analyzed the space volume, interface requirements, wiring, and stable anti-interference needs of AFC system station terminal equipment. The SIGM-2660/2661 was developed and designed with a focus on an integrated rugged design, multiple I/O interfaces, convenient wiring, robust system stability, and compact size.
Design Highlights Display
Intel X86 platform with excellent openness
I/O design suitable for AFC scenarios
The IO function is designed in accordance with the scenario requirements of the AFC System. It has 2*VGA+1*VGA(1*LVDS) three independent + one copy display, 12 serial ports (10 RS232 + 2 RS232/422/485)/14 serial ports (12 RS232 + 2 RS232/422/485), 2*G-LAN (WOL), 6*USB (USB wake-up), and SIGM-2661 also adds 1*LPT, 1*PS2, and 1*PS-ON. The following takes three important station terminal devices (TVM, BOM, AGM) as an example:
TVM:
BOM:
AGM:
Structural design tailored for AFC applications
Small size design, Single-sided I/O interfaces, saving installation space and facilitating wiring.
Safety and EMC certifications
AFC Power Remote Management
SIGM-2661 is equipped with ACPI+1*PS-ON+WOL LAN to realize remote management of AFC power supply.

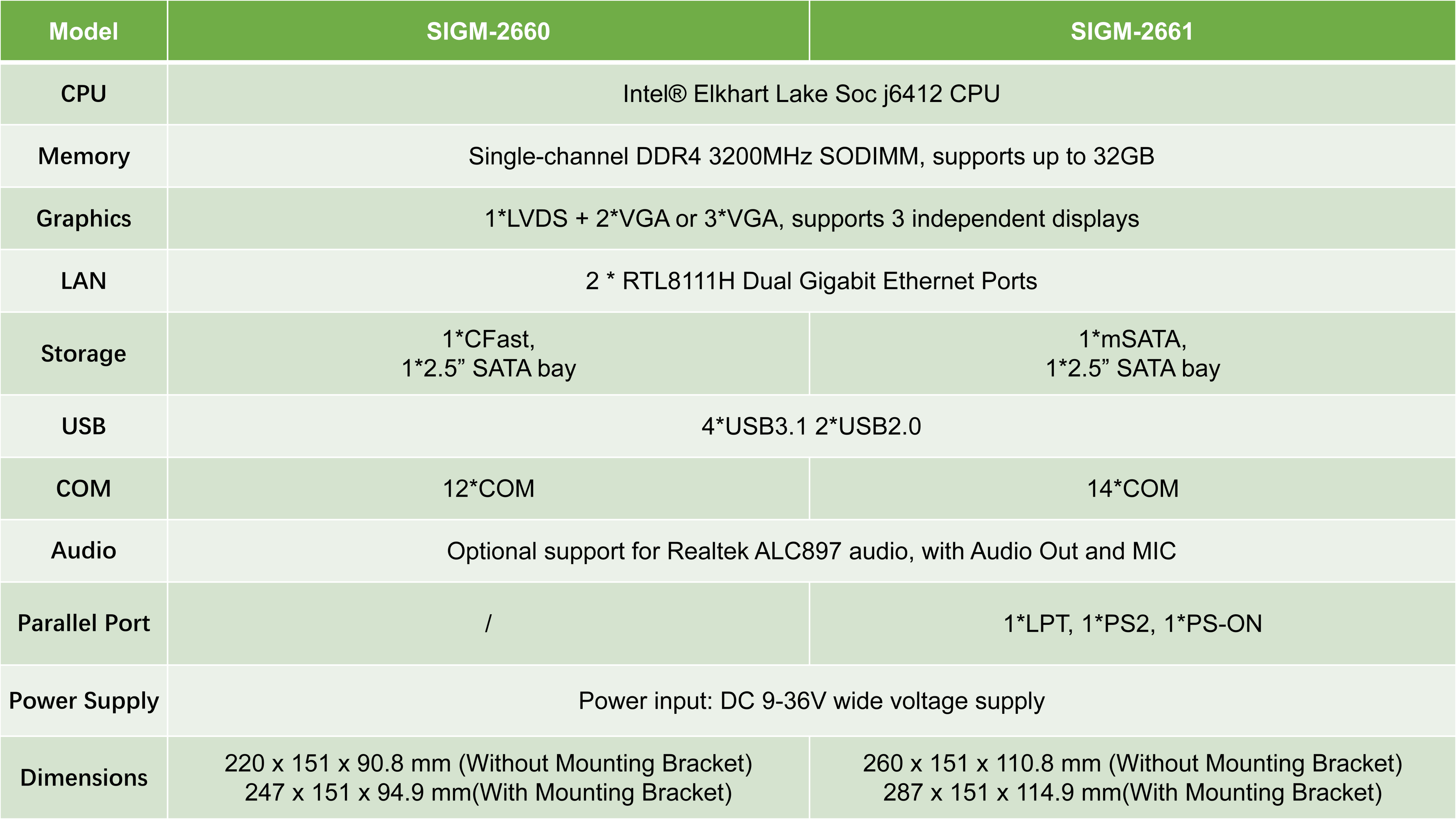

SIGM-2660/2611 Product Specifications
Market Direction
In the future, JHCTECH will continue to be user-centric, focus on user scenario needs, empower product innovation with scenarios, and launch more innovative products that meet scenario needs.
Learn more about SIGM-2661 series
