Workstation-grade embedded computing platform , accelerate Cooperative Vehicle Infrastructure System(CVIS)
Vehicle Infrastructure Integration (VII) , the trend of the intelligent transportation system, aims to effectively compensate for the blind spots in perception, fully realize the effective coordination and interaction between people , vehicles, and roads. Therefore, to ensure traffic safety, improve traffic efficiency, and promote the intelligentization and networking of the intelligent transportation industry.
Application cases
A leading domestic enterprise focusing on the Internet of Vehicles and smart city services, chose JHC high-performance mobile edge computing platform BRAV-7302, equipped with MXM3.1 GTX-1060M graphics card, fully empowering people, vehicles, and urban infrastructure to help the implementation of vehicle-road collaborative solutions and improve traffic efficiency.
System Principle

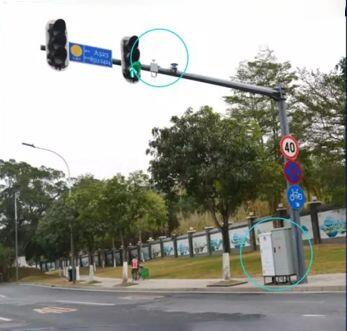

A data collection system consisting of a dome camera, a detection radar, etc, collects road vehicle information in real time. This information includes the vehicle's position, speed, distance, road traffic lights, and pedestrian information. BRAV-7302 uses the dedicated algorithm to analyze and process these data, and then transmit effective data to the cloud platform and also feed these data back to the RSU device. After the RSU device transmits the received information to the on-board unit OBU, it can judge complex road conditions and provide a strong support for the driver or the automatic driving system.

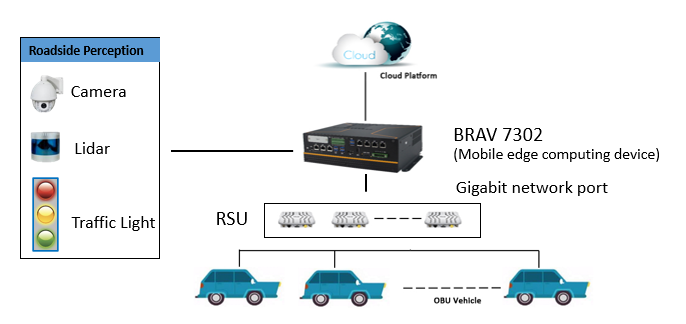

BRAV-7302 Operation Topology
Automated driving systems can obtain more information about road dynamics (including vehicles and pedestrians) through vehicle-road collaboration systems, greatly reducing the computational burden of data fusion and path planning for autonomous vehicles, enabling efficient transmission and autonomous driving.
The function of BRAV-7302 (mobile edge computing device): data storage + calculation analysis + data upload and feedback after analysis.

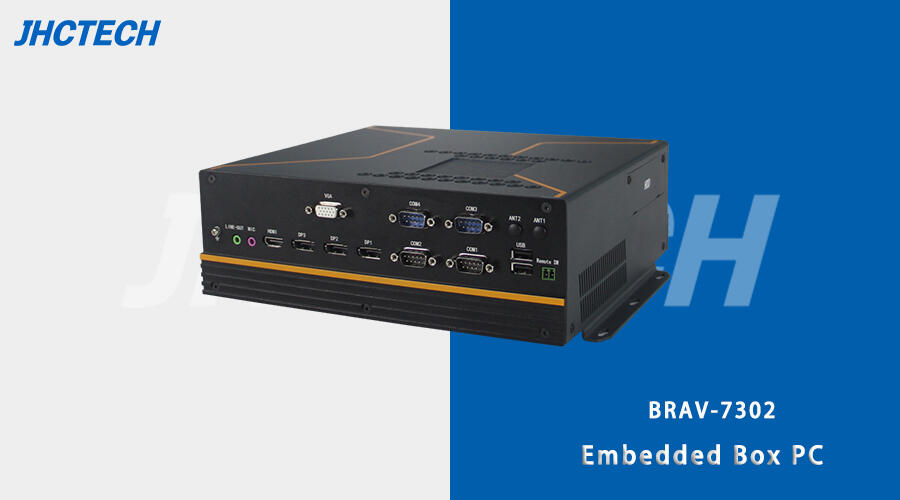

Product Introduction
Highlight:
- CPU+GPU dual processor.
- Multi-network port, multi-display, wireless communication, shock absorption design, suitable for on-site flexible application in AIOT field.
Key features:
- CPU and GPU fan cooling, independent air passage.
- Intel Kabylake-S/Skylake-S Core I3/I5/I7 CPU.
- 2*DDR4 2400/2133MHz SODIMM, Up to 32GB.
- 1*MXM 3.1 socket, support NVIDIA/AMD GPU.
- Intel 1*DP+1*HDMI+1*VGA, GPU 3*DP+1*HDMI.
- 3/7*LAN, 6*USB3.0, 3*USB2.0, 4*COM,16DIO,Audio.
- 1*Mini PCIe(PCIe+USB),1*M.2 2242 B-Key.
- 1*mSATA, 1/2*2.5" SATA, suppprt Raid0,1.
- Support Intel iVpro and TPM2.0.
- DC 6~48V Wide Power Input.
NVIDIA Jetson AGX Orin 32/64GB, 5*LAN, 2*USB3.2, 2*USB2.0, 4*COM, 2*CAN, 1*16-bit DIO, 1*HDMI, Time SYNC, DC 9~36V
BRAV-7131 is equipped with NVIDIA Jetson AGX Orin 32/64GB module, 8/12 cores ARM CPU and high-performance GPU, up to 200/275TOPS AI performance, onboard 32/64G memory and 64G storage, multichannel IO and clock synchronization, DC 9-36V wide voltage power supply. It can be used as MEC(Multi-Access Edge Computing) for intelligent transportation, machine vision, intelligent logistics and other industries.
Intel® Alder lake-S/Raptor lake-S CPU, 3*LAN, 6*USB3.2, 8K DP+4K HDMI , PCIe5.0 X16+PCIe4.0 X4，2*2.5”SATA bay, 1000W PSU DC IN 12V.
BRAV-7720-S001 is a workstation-grade Edge computing system, powered by Intel® Alder Lake-S or Raptor lake-S series CPU, Q670 chipset, dual-channel DDR5 memory, and dual PCIe expansions. Flexible optional computing power, multi IO interfaces, high PFC power supply, high efficiency cooling solution and industrial grade reliability design, very suitable for V2X MEC, highway event detection, unmanned experiment vehicle and high-precision machine vision and other fields .
Intel® Alder Lake-S LGA1700 CPU, 3*LAN, 6*USB3.2, 8K DP+4K HDMI , 2*PCIe5.0 X8+2*PCIe4.0 X4，2*2.5”SATA bay, 1000W DC IN 12V.
BRAV-7721-S001 is a workstation-grade Edge computing system, powered by Intel® Alder Lake-S series CPU, Q670 chipset, dual-channel DDR5 memory, and four PCIe expansions. Flexible optional computing power, multi IO interfaces, high PFC power supply , high efficiency cooling solution and industrial grade reliability design, very suitable for V2X MEC, highway event detection, unmanned experiment vehicle and high-precision machine vision and other fields and applications.
Intel® Skylake-S/Kabylake-S Core I3/I5/I7 CPU, 7*LAN, 6*USB3.0, MXM3.1 GPU
6*4K display, iVpro technology, DC-IN 6~48V
BRAV-7302 is a high-performance GPU Box Computer, CPU and GPU fan cooling by independent air passage. It is powered by all kinds of Intel Skylake® -S/Kabylake-S CPU, DDR4 2133/2400MHz dual channel memory up to 32GB. DP1.2+HDMI1.4b dual 4K Intel HDG display, 3*DP+1*HDMI GPU display. 3/7*Intel LAN, 4/6*USB3.0, 2*Mini PCIe and 1*M.2 support 4G and Wifi/BT.The2*2.5"SATA HDD/SSD support Raid0/1.WithDC6-48V wide power input, high performance and multi IO, it is the application for Intelligent AI, Video Security and Machine Vision.
Intel® Coffee Lake LGA1151 CPU, 3*LAN, 4*USB3.1, 1*HDMI, 2*DP, 3*4K Displays,
4*PCIe slots, 4*SATA3, ATX 400W Power.
BRAV-7501 is a Workstation-grade Edge Computing system. It is powered by Intel® Coffee Lake-R series processor, Intel® Q370/C246 Chipset, 4*DDR4 2666/2400MHzdualchannelmemory, up to 128 GB, 2*DP1.2+1*HDMI 1.4 b. 3*GbE LAN, 4*USB3.1, 1*Mini PCIe supports 4G /WiFi/BT.1*M.2 M- Key,support NVMe.S001with2*3.5"SATA3bay,S002with4*2.5" SATA3 HDD/SSD tray, support RAID 0/1/5/10. support multiple PCIe expansion, flexible to meet application requirements. Workstation level system performance, rich expansion flexibility, industrial level product design which is very suitable for industrial automation, AI edge computing, small intelligent workstations, multimedia service systems, visual control and so on.
AI workstation.Intel® Coffee Lake-RLGA1151 CPU, Multi-channel memory, DC power supply, with Modular I/O Expansion Design, Support 350W GPU expansion.
BRAV-7520 is a Workstation-grade Edge Computing system. It is powered by Intel® CoffeeLake-Rseriesprocessor, Intel® Q370/C246Chipset,4*DDR4 2666/2400MHzdualchannel memory, up to 128GB，2*DP1.2+1*VGA. 3*GbE LAN, 6*USB3.1, 1*Mini PCIe supports 4G /WiFi/BT. 1*M.2 E-Key & SIM, 1*M..2 B-key, support 5G , 1*M.2M-Key,supportNVMe.2*2.5" SATA3 HDD/SSD tray, support RAID 0/1. support multiple PCIe expansion, flexible to meet application requirements. Workstation level system performance, rich expansion flexibility, industrial level product design which is very suitable for industrial automation, AI edge computing, small intelligent workstations, multimedia service systems, high-precision machine vision and so on.
Intel® Coffee Lake-RLGA1151 CPU, Dual-GPU, Multi-channel memory, DC power supply, with Modular I/O Expansion Design
BRAV-7521 is a Workstation-grade Edge Computing system. It is powered by Intel® Coffee Lake-R series processor, Intel® Q370/C246 Chipset, 4*DDR4 2666/2400MHzdualchannel memory, up to 128GB，2*DP1.2+1*VGA. 3*GbE LAN, 6*USB3.1, 1*Mini PCIe supports 4G /WiFi/BT. 1*M.2 E-Key & SIM, 1*M.2 B-key, support 5G, 1*M.2 M-Key, support NVMe.4*2.5" SATA3 HDD/SSD tray, support RAID 0/1/5/10. support multiple PCIe expansion, flexible to meet application requirements. Workstation level system performance, rich expansion flexibility, industrial level product design which is very suitable for industrial automation, AI edge computing, small intelligent workstations, multimedia service systems, high-precision machine vision and so on.
